Name: Ma5800X7 OLT GPON Ma5800T X7 X15 X2 GEPON Olt Optical Line Terminal MPLA MPLB 10G Uplink Card NEXD POWER PILA
Brand: ENKEN
SKU: 1600487169533
Price: 620.00 USD
Availability: InStock
Rating: 5 (1 reviews)

Description

Key attributes

Type

BUSINESS CARDS

Use

INDOOR

Network

TCP, POE, Wi-Fi, 4 G

Model Number

GPHF

Brand Name

Place of Origin

Hunan, China

Warranty Time

1 YEAR

Product name

BUSINESS CARDS

Application

FTTH FTTX Network

Color

black

Ports

16 Ports

Material

ABS,iron

Function

Distribution Fiber System (FTTH)

Warranty

1 Year / 12 Months

Fiber Type

TTx Solutions

Power supply

110~240VAC

Keywords

GPON OLT Card

Packaging and delivery

Selling Units

Single item

Product descriptions from the supplier

Product Description

Product Name	Network Interface Board
Application	olt smartax ma5800
Feature	16 ports GPON
Range	40km

Product performance description

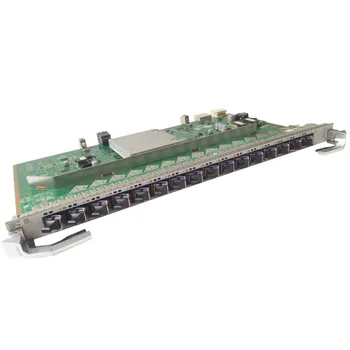

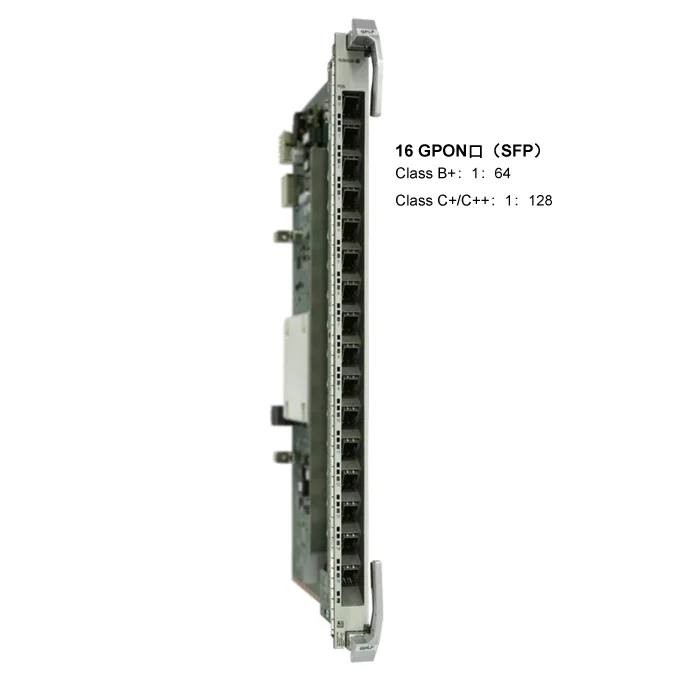

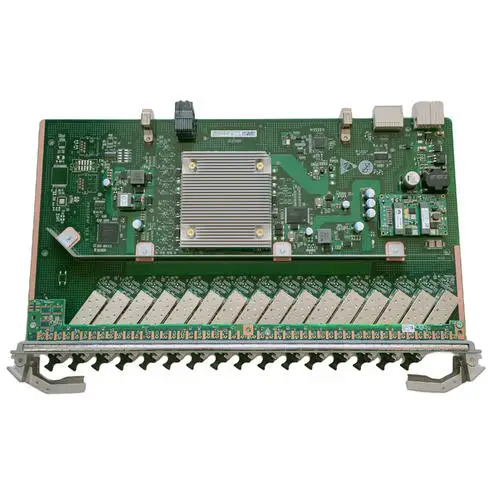

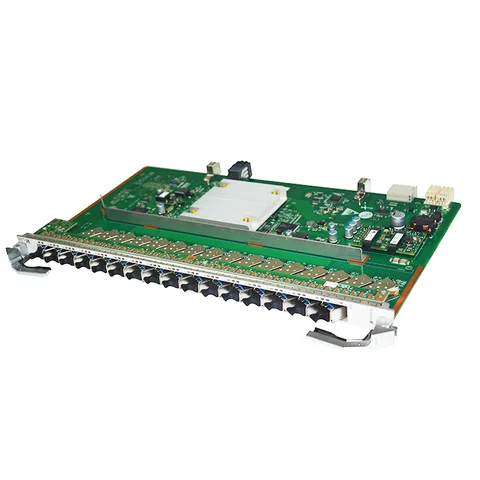

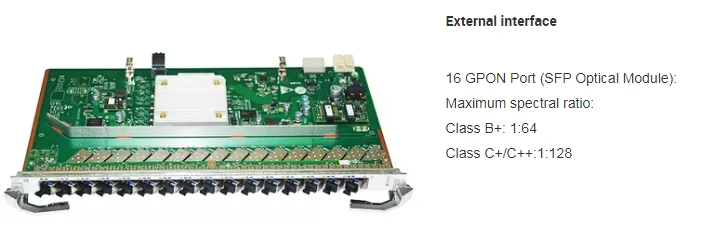

GPHF is a 16-port GPON interface board that cooperates with ONU (OPTIC NETWORK UNIT) equipment to realize GPON service access.

1. High Density & Energy Saving

1) High density & low power consumption, supporting 2048 access users.
2) Manual shutdown of idle PON ports, preventing power waste.
3) Maximum differential fiber distance is 40km, simplifying network planning.

2. Intelligent Management Channel

1) 4-level HQoS, improving user experience
2) 9216 jumbo frames, greatly improving transmission efficiency

3. Efficient OAM

1) Real-time rogue ONU detection and isolation, ensuring stable service running.
2) Variable-length of OMCI, improving upgrade efficiency and reducing break off time.
3) 1:64 eOTDR (with FBG), supporting accurate fault demarcation and quick fault locating.

Specifications	H901GPHF /H902GPHF	H901GPUF /H902GPUF	H901GPLF /H902GPLF	H901GPSF /H902GPSF
Application	FTTC/B/D, D-CCAP, FTTH, FTTO/FTTM	FTTC/B/D, D-CCAP, FTTH, FTTO/FTTM	FTTC/B/D, FTTH, FTTO/FTTM	FTTH
Number of Interfaces	16	16	16	16
Forwarding Performance	40G/bits	40G/bits	40G/bits	40G/bits
Port Rate	Up：1.224Gbits Dwon:2.488Gbits	Up：1.224Gbits Dwon:2.488Gbits	Up：1.224Gbits Dwon:2.488Gbits	Up：1.224Gbits Dwon:2.488Gbits
Maximum Splitting Ratio	1:128	1:128	1:128	1:128
Emitting Control of Module	√	√	√	√
Granular shaping	√	√	√	√
Temperature Query/Notice	√	√	√	√
Automatic Shutdown	√	√	√	√
Energy Saving	√	√	×	√
Maximum Distance Difference	40km	40km	40km	40km
Number of MAC addresses	131072	32768	32768	16384
Downstream FEC	√	√	√	√
Upstream FEC	√	√	√	√
Isolation of Fake	√	√	√	√
Bandwidth of Each Port	1238784kbit/s	1238784kbit/s	1238784kbit/s	1238784kbit/s
T-CONT Number of Each Port	1024	1024	1024	1024
Maximum ONUs of Each Port	128	128	128	128
GEM Ports of Each Board	16384	16384	16384	16384
GEM Ports of each Port	3872	3872	3872	3872
Maximum service streams of Each Board	16368	16368	16368	16368
9K Jumbo Frame	√	×	√	×

Routers/ARP	196608	196608	196608	65536
1588V3	√	√	√	√
NTP	√	√	√	√
HQOS	√	×	×	×
Anti-DOS, Anti-MAC/IP Spoofing	√	√	√	√
Y.1731 PM	√	√	√	×
PON ISSU	√	×	×	√
D-CCAP	√	×	×	×
GPON Type B Protect（single）	√	√	√	√
GPON Type B Protect（Dual）	√	×	×	×
GPON Type C Protect（single）	√	√	√	√
GPON Type C Protect（Dual）	√	×	×	×

Packing&Shipping

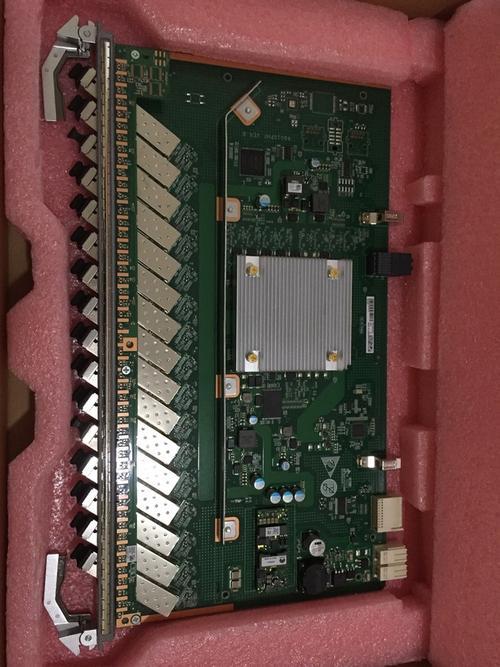

1. All products will be packed in carton , so the product can get effective protection to avoid damage.
2. Packaging according to customer requirement

Shipping

1. We shipping via DHL / FedEx / TNT/etc for samll orders. Yow can get your packages in about 3-5 days all over the world.
2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.
3. You can choose your own shipping agent, we will provide good cooperation for it.

FAQ

Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q:Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed . If quantity is more than 1000pcs /order, it will need extra 1-2 weeks .

Q: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our formal products.

Q: Could we make a visit to your factory?
A: Yes,sure, you are welcomed .

Our Advantages:
All the products 100% Original / Ability for OLT & ONU configuration and Firmware updating./ UK |US|AU|EU Power Adapter Available
/ English Firmware Setup Interface.
