Product Description

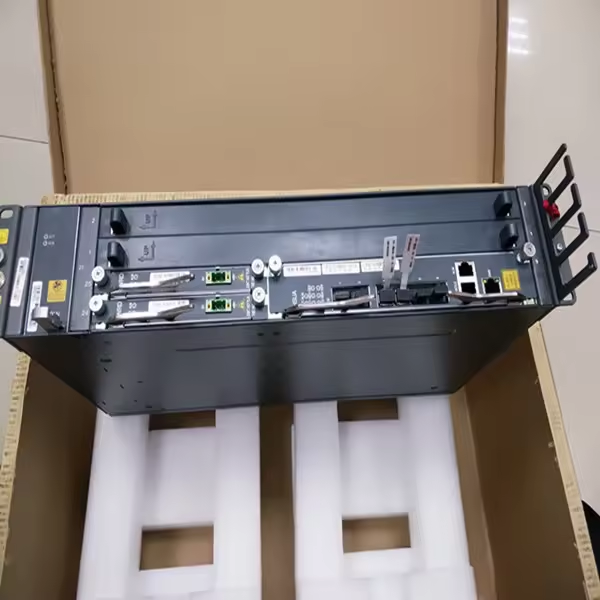

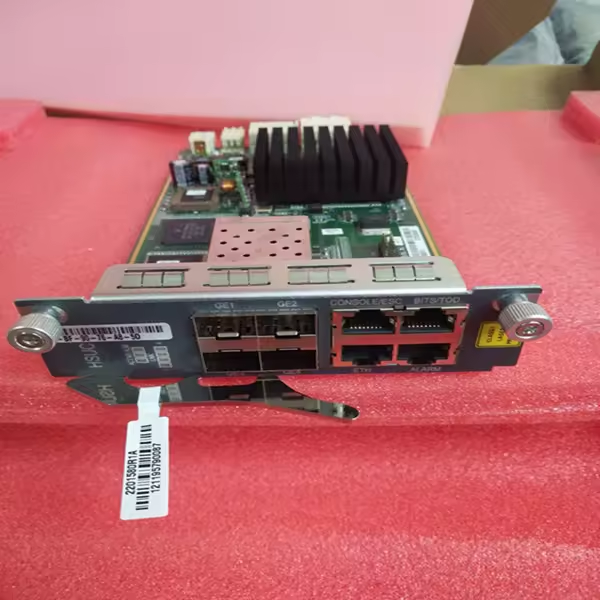

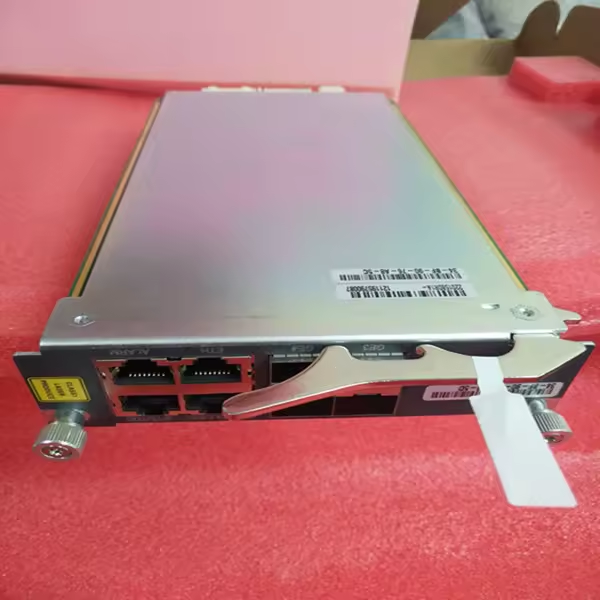

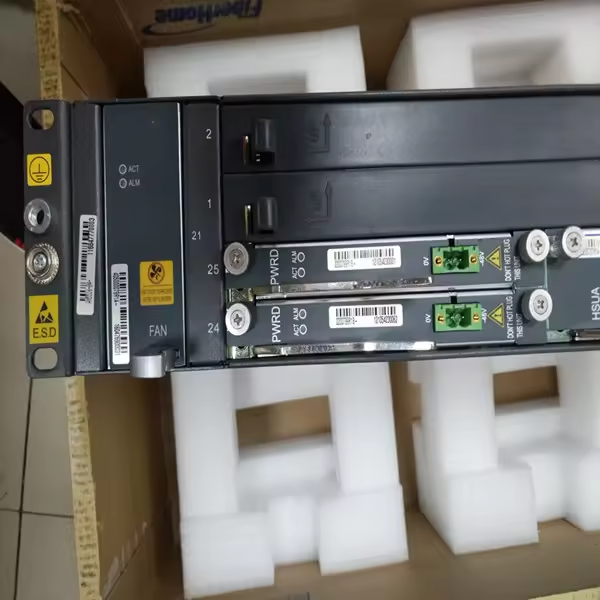

The HSUA Uplink Card serves as the switching uplink card for the AN5516-04 OLT, providing system control, service switching, and aggregation functionalities. It features 4-port GE upstream optical/electrical ports. The basic configuration for the AN5516-04 chassis includes 2*HSUC/A control&uplink boards, 1*PWRA AC power board, and 2*GCOB/GC8B 16/8-ports GPON service boards equipped with C+/C++ SFP modules. The AN5516-04 equipment represents a new generation intelligent carrier-grade access product integrating MSAN/EPON/GPON/10GEPON/XG-PON technologies. This versatile product not only offers large-capacity, high-bandwidth, and cost-effective voice, data, and video service access solutions but also features compact design and easy deployment capabilities, making it suitable for various deployment scenarios with limited space. It effectively meets the growing demand for comprehensive network services coverage. Additionally, its compatibility with traditional copper wire access services enhances service compatibility and promotes the evolution of traditional access solutions.
|
Model
|
HSUA
|
|
Descriptions
|
4-Port GE Optical/Electrical Uplink
|
|
Supported
|
Intra-card aggregation; Inter-card aggregation
|
|
Clock Synchronization Modes
|
SyncE, 1588 V2, and BITS
|
|
Item
|
10 / 100 / 1000Base-T
|
|
Interface type
|
RJ45
|
|
Interface rate
|
10 / 100 / 1000Mbit/s self-adaptive
|
|
Transmission media
|
CAT-5
|
|
Applicable standard
|
IEEE 802.3-2005
|
|
Transmission Distance
|
100m
|
|
Item
|
1000Base-SX
|
1000Base-LX
|
|
Interface type
|
LC / PC
|
LC / PC
|
|
Interface rate
|
1000Mbit/s
|
1000Mbit/s
|
|
Central wavelength
|
850nm
|
1310nm
|
|
Maximum transmission
|
500m
|
20km
|
|
Maximum launched power
|
-4dBm
|
-3dBm
|
|
Minimum launched power
|
-9.5dBm
|
-11.5dBm
|
|
Maximum receiving sensitivity
|
-17dBm
|
-19dBm
|
|
Minimum extinction ratio
|
9dB
|
9dB
|
