N1 Module: Single Fiber Bidirectional Optical Module N1
N2a Module: Single Fiber Bidirectional Optical Module N2a
Operating Wavelength
Tx: 1577 nm, Rx: 1270 nm
Encapsulation Type
SFP+
Port Rate
Tx: 10 Gbit/s, Rx: 2.488 Gbit/s
Minimun Output Optical Power
N1 Module: 2dBm
N2a Module: 4dBm
Maximum Output Optical Power
N1 Module: 6dBm
N2a Module: 8dBm
Maximum Receiver Sensitivity
N1 Module: -27.5dBm
N2a Module: -29.50dBm
Optical Connector Type
SC/UPC
Optical Fiber Type
Single-mode
Reach
20.00 km
Saturation optical power
N1 Module: -7dBm
N2a Module: -9dBm
Extinction ratio
8.2dB
Weight
1.68kg
Dimensions (W x D x H)
393.1 mm(H) × 23.9 mm(W) × 214 mm(D)

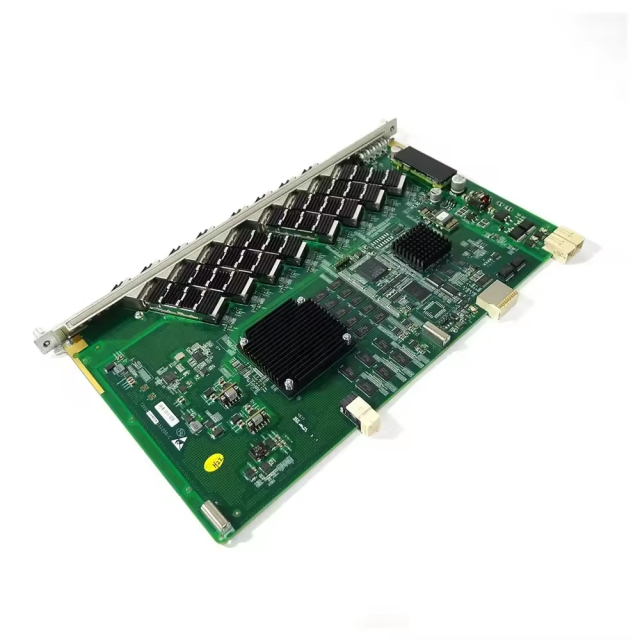

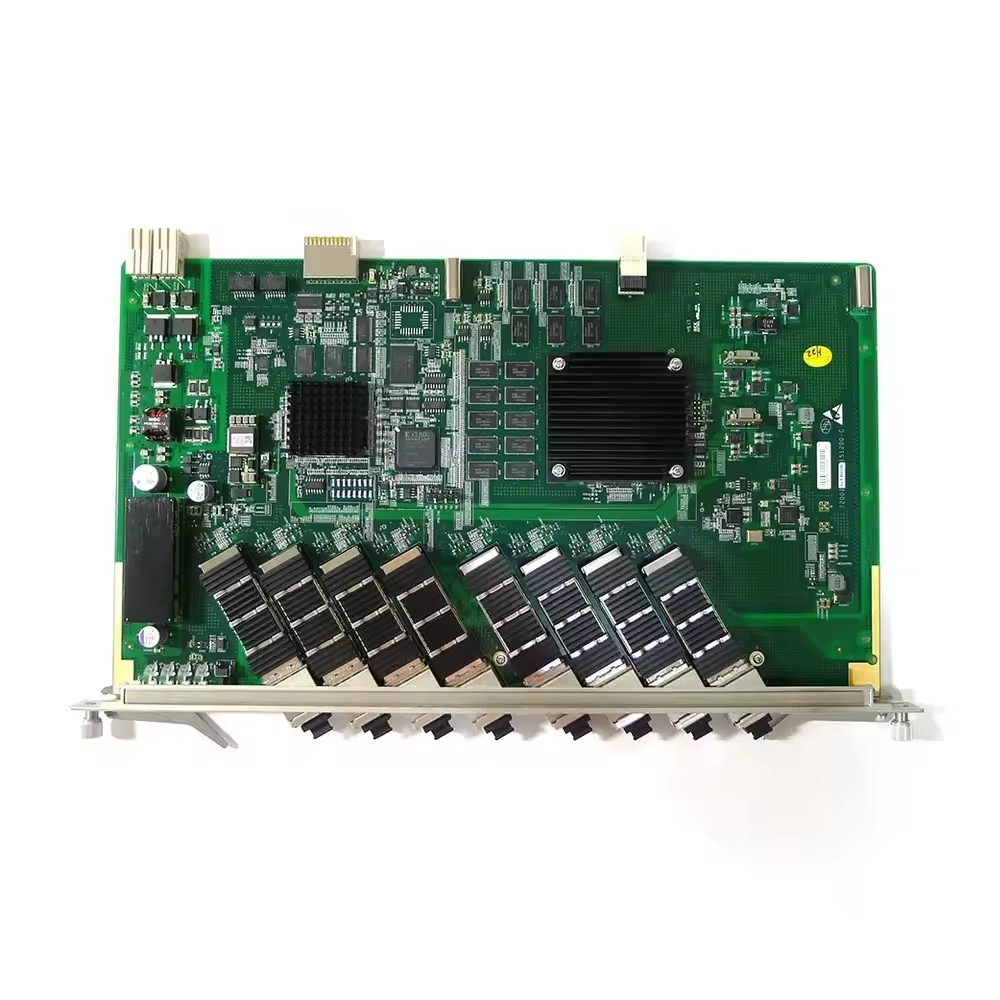

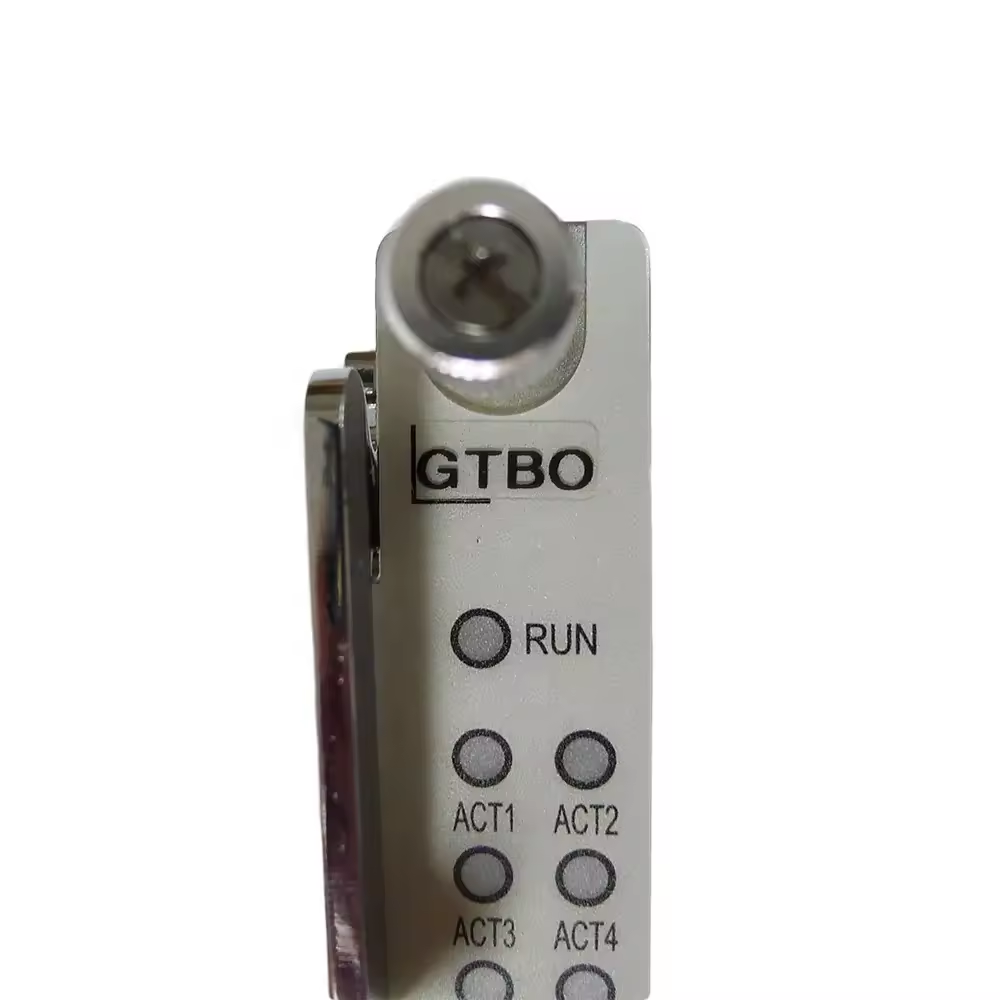

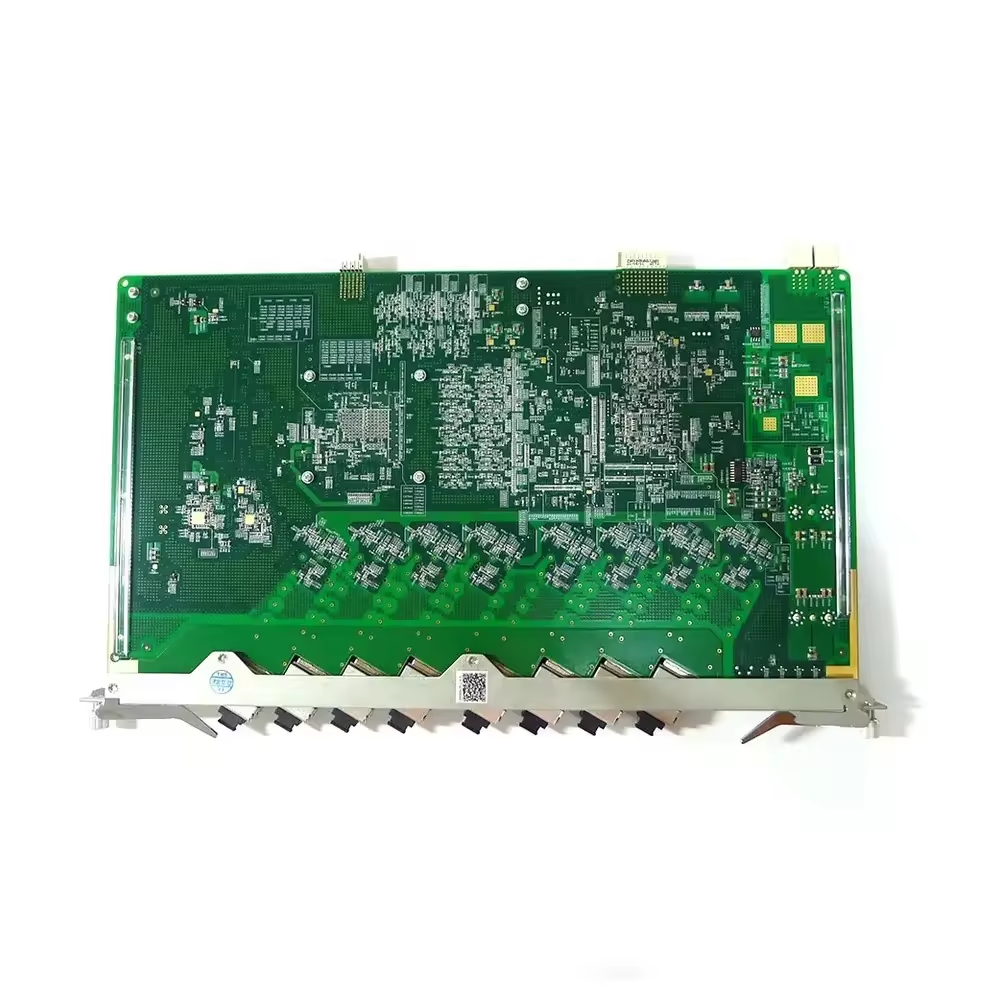

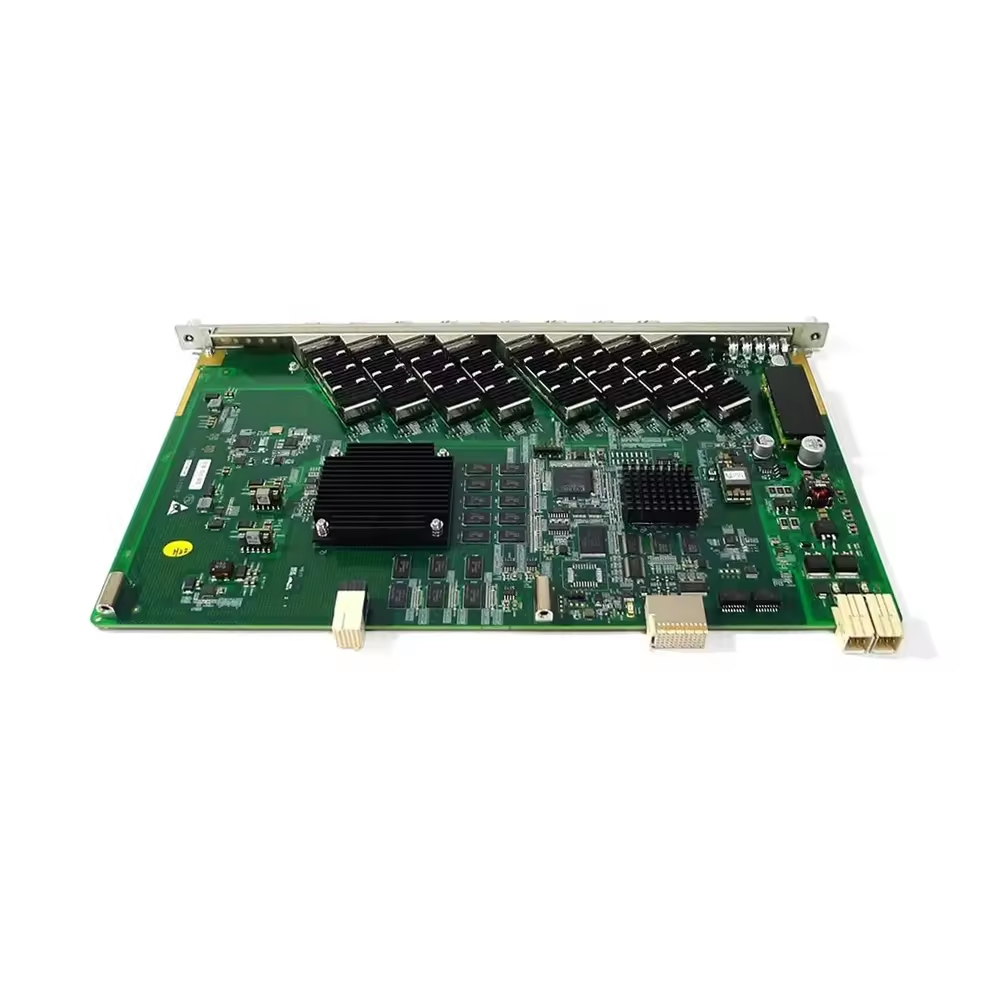

ZTE GTBO Service Board Product Features
* Support ISSU and NSR * Support multiple services including VoIP, HSI, IPTV, VPN, and mobile backhaul. * Support CFM functions defined by 802.1ag. * Support Type-B/C PON protection, Ethernet and IP service protection, and redundant protection of the switch & control cards, power cards, fans, and uplink interfaces. * Provide enriched equipment security, system security, network security and service security features * Provide redundant control & switch card on the control plane, and supports dual matrix load balancing on the forwarding plane * Support 8 port XGS-PON/ XG-PON/Combo PON/10G-EPON cards, 8-port 10GE cards and 48-port GE P2P cards.
