40 x 185 x 120 mm (without external antenna and pads)
Weight (Without Power Adapter)
Approximately 400 g
Operating Temperature
0–40°C
Operating Humidity
5–95% RH (non-condensing)
Power Adapter Input
100–240 V AC, 50/60 Hz
System Power Supply
11–14 V DC, 1.5 A

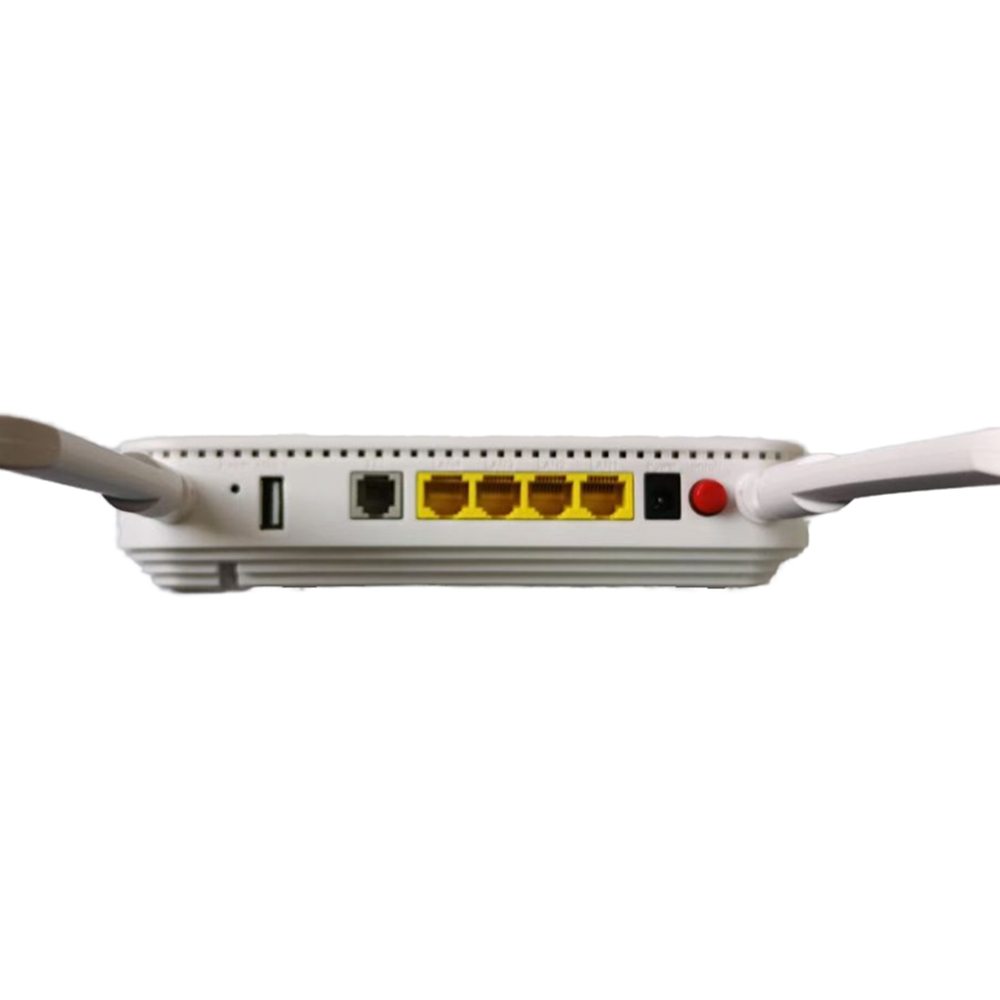

UNI
4 x GE, 1 x POTS, 1 x USB, 2.4G/5G Wi-Fi 6
NNI
XPON
Maximum Power Consumption*
18 W
Antenna
External antenna
Installation Mode
Desktop
XG-PON Port
• SC/UPC • Class N1/N2a/E1 • Receiver sensitivity: –28 dBm • Wavelengths: US 1260–1280 nm, DS 1575–1580 nm • Wavelength Blocking Filter (WBF) • Flexible mapping between the GEM port and TCONT • SN/Password/SN + Password/Bi-directional authentication based on OMCI • Upstream and downstream FEC • SR-DBA and NSR-DBA • 2.5 Gbit/s upstream, 10 Gbit/s downstream
Ethernet Electrical Port
• Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning • Auto port speeds (10/100/1000 Mbit/s)
POTS Port
• Maximum REN: 4 • G.711A/μ, G.729a/b and G.722 encoding/decoding • T.30/T.38/G.711 fax mode • DTMF • Emergency calls (with the SIP protocol)
WLAN
• IEEE 802.11 b/g/n/ax (2.4G) • IEEE 802.11 a/n/ac/ax (5G) • 2 x 2 MIMO (2.4G) • 2 x 2 MIMO (5G) • Antenna gain: 5 dBi • WMM/Multiple SSIDs/WPS • 2.4G and 5G concurrency • Air interface rate: 574 Mbit/s (2.4G), 2.402 Gbit/s (5G) • Beamforming • Band steering • DL OFDMA • DL MU-MIMO • 1024 QAM • 160 MHz frequency bandwidth • WPA3
USB Port
• USB 2.0 • FTP-based network storage • File/Print sharing based on SAMBA • DLNA function
Power Saving
COC V7
